EAW V Series Monitor Loudspeakers

PASSIVE TWO-WAY STAGE MONITOR

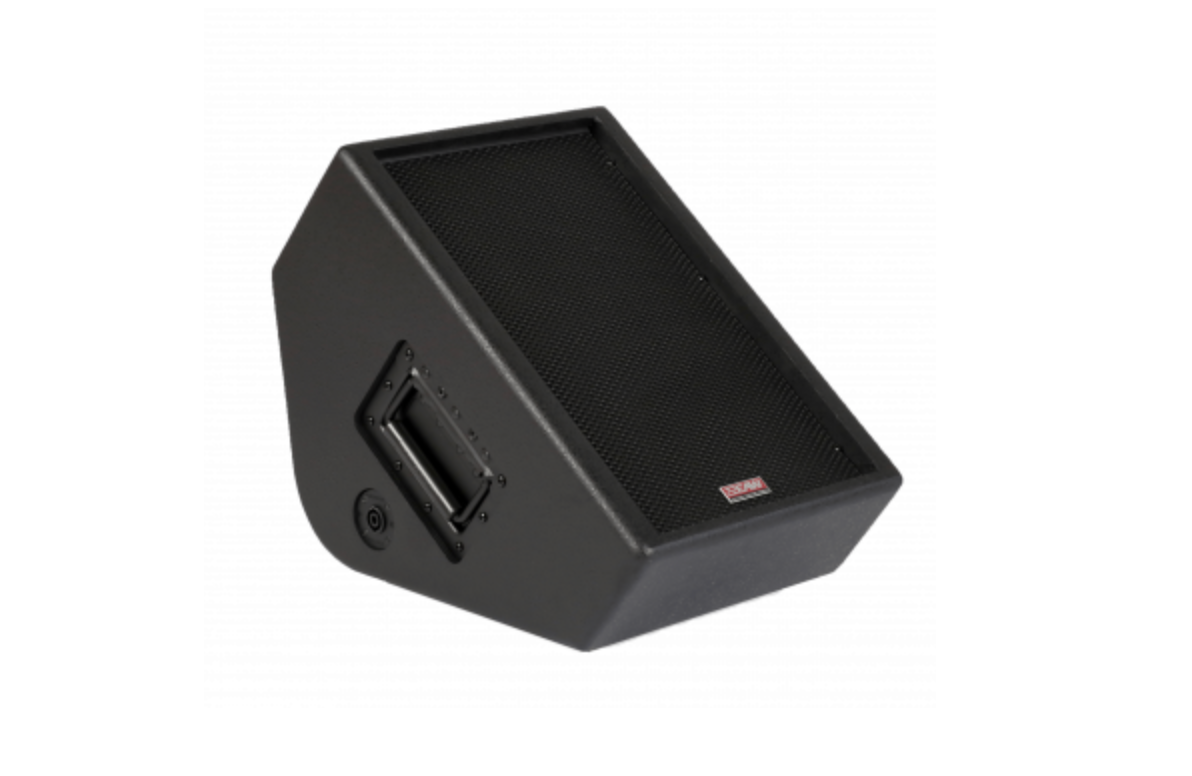

The VFM109i two-way, stage monitor loudspeaker system includes a direct-radiating, vented, 10-in LF cone transducer and a 1-in exit / 1.75-in voice coil HF compression driver loaded with a large, square, user-rotatable 90×60 coverage pattern horn.

Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFM109i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

The VFM109i features a classic stage monitor design with 4 connectors located on both sides for easy loop-through connections. They also include a pole mount cup should they need to be used as small PA mains. Engineers integrated the handles into the enclosure design, giving the low-profile enclosure a sleek, clean appearance.
Six year warranty.

• Two-way, full range loudspeakers
• Classic stage monitor design
• Pole mount cup for use as main system
• Large, user-rotatable horns for optimized pattern control
• Beamwidth-matching crossover point
• Long-lasting reliability
