12IN 250W Coaxial Compression Speaker, Flown or Recessed

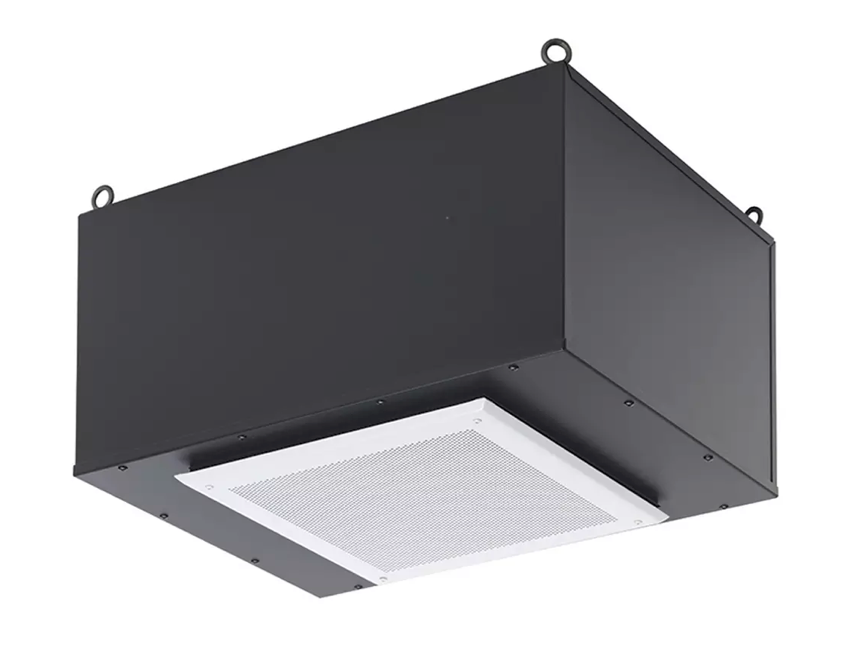

The iMount® ready-to-install high performance loudspeaker provides quality sound distribution of foreground or background music in all kinds of commercial venues. It's ideal for high ceiling/high energy applications like clubs and bars, sporting facilities, concourses, hotel ballrooms, transportation terminals, convention centers, and exhibit halls. The rectangular i-Mount is designed to hang, bolt, or suspend and is suitable for open ceilings or recessed applications. Includes driver, transformer, enclosure and grille.

• Driver (12P150):  12 in. (8 ohm) 150W driver with robust motor structure, 38 oz. magnet, 2 in. voice coil and coaxially mounted high frequency compression driver for high power handling with excellent efficiency. A steel plate is mounted over the driver to protect it during shipping and installation. Remove it to mount the grille. See the driver spec sheet for more information.
• Transformer (TLS-10070):  70V 100W transformer for superior music fidelity in 70V distributed applications. This 20/20 AudioVisionTM transformer offers true 20Hz-20kHz performance. A screwdriver-adjustable tap selector switch is accessible behind the grille.  Note: Lowell 20/20 AudioVision™ transformers have full frequency response and high power handling which allows the speaker to operate at full potential while providing a stable load to the amplifier. The transformer allows a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system but with easier wiring, reduced labor and less expense.
• Grille:  Square perforated steel grille with white powder epoxy finish is ideal for applications where the speaker is suspended in a tile, sheetrock or plaster ceiling. 15.25 in. square x 0.375 in.
• Enclosure:  3 cu.ft. precision-formed steel enclosure (23.94 in. x 18.19 in. x 12 in.) features anti-vibration ribs, sound-stop board, 1-1/2 in. thick premium acoustic lining and forged 1/4 in.–20 eyebolts screwed into mounting nuts for secure suspended installation (using flyware by others). Externally accessible connections are terminated through a 4 in. x 4 in. flush cover plate. Black powder epoxy finish. NOTE: For plenum space with limited height, a 2 cu.ft. enclosure is also available. Call for model no. and pricing.
