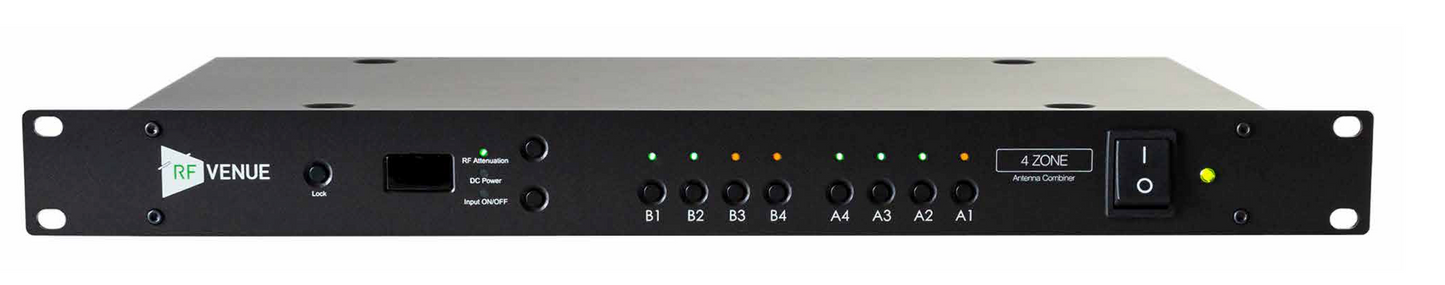

4 Zone Antenna Combiner

The 4 ZONE antenna combiner takes the complexity out of multi-zone wireless microphone projects. 4 ZONE combines together up to four separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms.

For fine tuning RF levels in each coverage area, 4 ZONE provides individual channel RF signal attenuation control down to -31dB in 1 dB steps. And for active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs.

With selectable ON/OFF inputs, 4 ZONE also allows for quick control of coverage zones for roaming microphone transmitters, so you can choose which zones are active as a live event or location sound project progresses, saving setup and breakdown time on site.
