50W Attenuator w/Program Switch

50W mono autoformer attenuator-style volume control with a six-source program selector switch and two-gang wall plate. Also includes two single (one-gang) plates for separate installation.

SPECIFICATIONS

• 50W volume control for use with 70V or 25V speaker lines provides 33dB attenuation in 10 steps. Last two steps before off are 6dB (33dB total).
• Wiring connections are plug-in screw terminations for prewire convenience.
• Six-source program selector switch is two-pole, non shorting rotary style to assure complete isolation between lines.
• Connections are Euro-style screw terminals allowing the unit to be field connected for use together or independently.

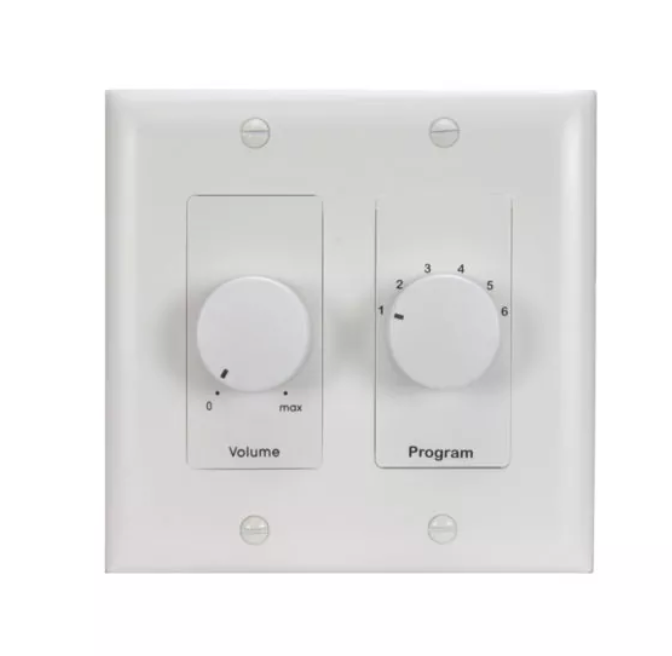

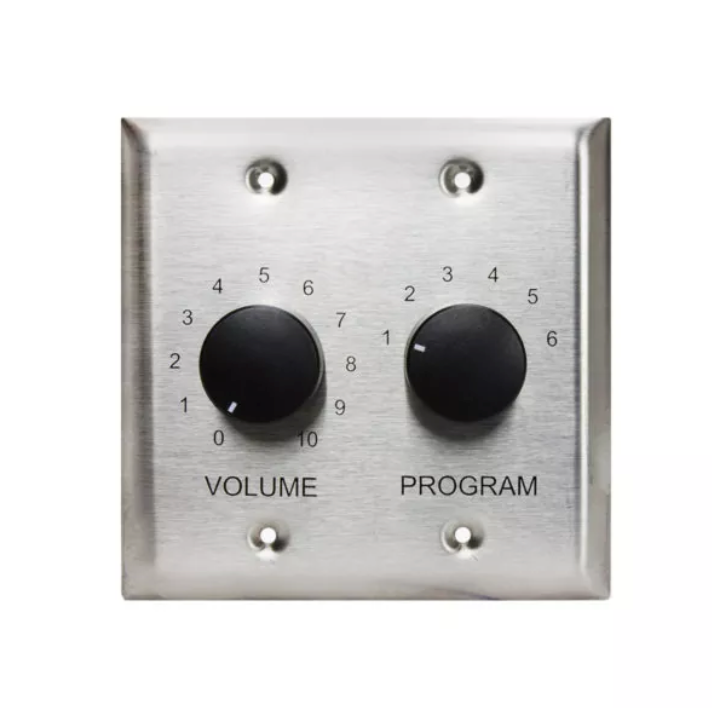

• Includes standard 2-gang wall plate plus two 1-gang plates for separate location mounting.
• The 2-gang plate (4.562 in. x 4.5 in. x 2.125 in.) is made to install in a 2-gang or 4 in. square E.O. box with mud ring (not included).
• Includes knob and mounting screws
