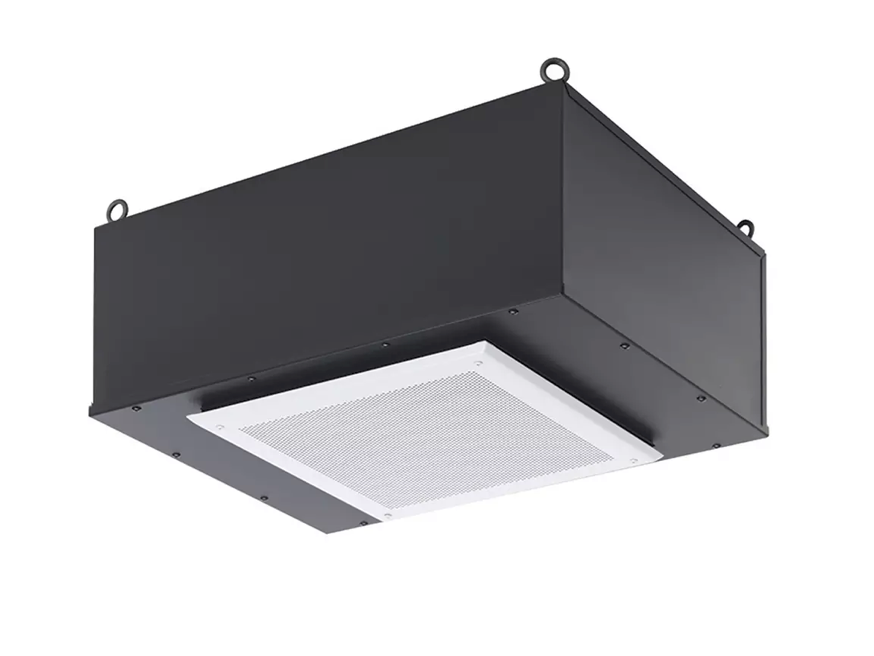

8IN 100W Coaxial Compression Speaker, Flown or Recessed

ESP Series Pendant Speakers are engineered to acoustically match the ES Series of recessed speakers, enabling the integration of exceptional performance with even coverage no matter the type of architecture encountered. ESP speakers feature a built-in bracket for mounting with pipe or cable but they also have threaded insert points to add a U-bracket for wall or truss-mount. The sleek design, quality performance and versatile mounting options make the ESP Series suitable for a wide variety of applications that require clear speech and full frequency music. Includes driver, transformer, enclosure, grille.

• Driver (8P100):  8 in. (8ohm) 100W driver with robust motor structure, 38 oz. magnet, 2 in. voice coil and coaxially mounted high frequency compression driver for high power handling with excellent efficiency. A steel plate is mounted over the driver to protect it during shipping and installation. Remove it to mount the grille. See the driver spec sheet for more information.
• Transformer (TLS-10070):  70V 100 transformer for superior music fidelity in 70V distributed applications. The 20/20 AudioVisionTM transformer offers true 20Hz-20kHz performance. A screwdriver-adjustable tap selector switch is behind the grille. Note: Lowell 20/20 AudioVision™ transformers have full frequency response and high power handling which allows the speaker to operate at full potential while providing a stable load to the amplifier. The transformer allows a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system but with easier wiring, reduced labor and less expense.
• Grille:  Square perforated steel grille with white powder epoxy finish is ideal for applications where the speaker is suspended in a tile, sheetrock or plaster ceiling. 15.25 in. square x 0.375 in.
• Enclosure:  2 cu.ft. precision-formed steel enclosure (23.937 in. x 18.19 in. x 8.19 in.) features anti-vibration ribs, sound-stop board, 1-1/2 in. thick premium acoustic lining and forged 1/4 in.–20 eyebolts screwed into mounting nuts for secure suspended installation (using flyware by others). Externally accessible connections are terminated through a 4 in. x 4 in. flush cover plate. Black powder epoxy finish.
