EAW

MW Series Monitor Loudspeakers

MW Series Monitor Loudspeakers

Regular price $1,937.00
Regular price Sale price $1,937.00
Sale Sold out
Shipping calculated at checkout.

Usually ships in 10 - 15 days. Contact us for expedited shipping at 205-578-3156.

STAGE MONITOR ENCLOSURE

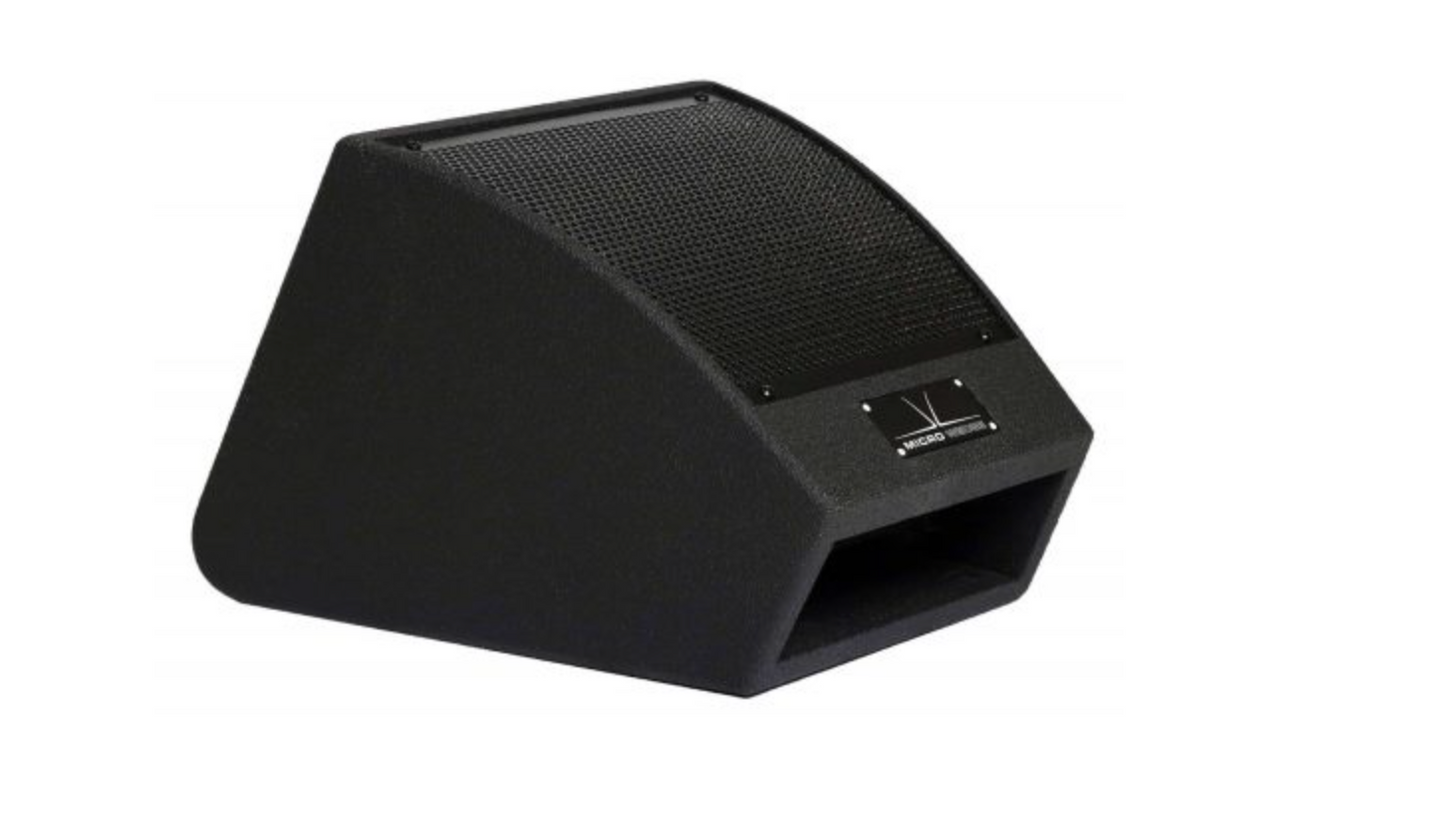

The MicroWedge MW8 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (founder of Rat Sound Systems, Inc.) and the EAW Engineering Department, resulting in dramatically upgraded performance and ergonomics. The coaxial design pairs a 8-inch woofer with a 1.75-inch voice-coil compression driver to provide full yet controlled 90-degree conical dispersion.

All frequencies emanate from the exact same point, eliminating crossover region problems and time/phase irregularities, as well as optimizing coherency. The coaxial approach also contributes to a very compact, low-profile footprint.

The port on the front of the cabinet enhances LF response in coupling with the floor, the opening also houses a convenient carrying handle and dual 4 connectors.

The MW8 enjoys the advantage of working equally well as a stage monitor or as a console bridge monitor. It was designed with a sturdy balance so that when set upright (on its backside) it rests easily on either side of a console bridge. A conveniently located pair of 4 connectors further simplifies console setup. An optional pole mount is also available.

The Baltic birch cabinets are available in a black or white finish. The black monitors are protected with EAW’s RoadCoatTM which provides a black finish and tremendous scratch resistance. The rugged steel grill keeps its distinctive shape even if stood upon. Points for Omni-mount plates are located the bottom of the MW8 to aid in hanging the monitors.

For applications that require enhanced performance the MW8 can be optimized using the EAW UX48 digital signal processor or an EAW UXA amplifier.

  • 6 year warranty.
  • Highly coherent coaxial design (8-inch woofer, vented)
  • Enhanced fidelity and power handling
  • Upgraded transducers and crossover design
  • Convenient input connector location
  • Sturdy balance for console bridge monitor use
