The Light Source
Mega-Swivel Clamp
Mega-Swivel Clamp
Regular price
$24.00
Regular price
Sale price
$24.00
Unit price
/
per
Shipping calculated at checkout.
Usually ships in 10 - 15 days. Contact us for expedited shipping at 205-578-3156.
Couldn't load pickup availability

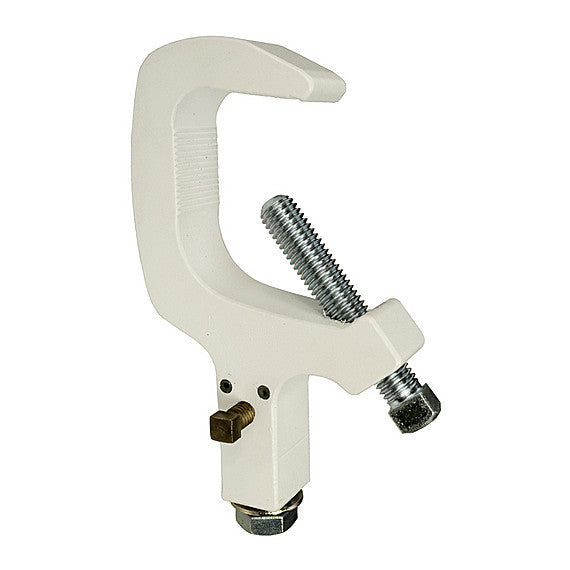

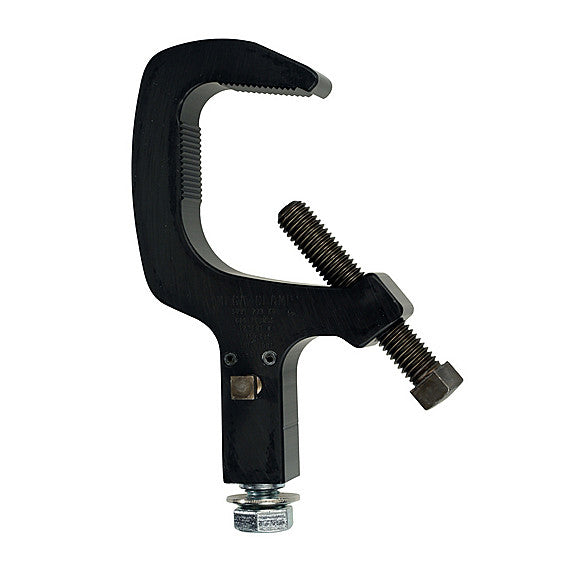

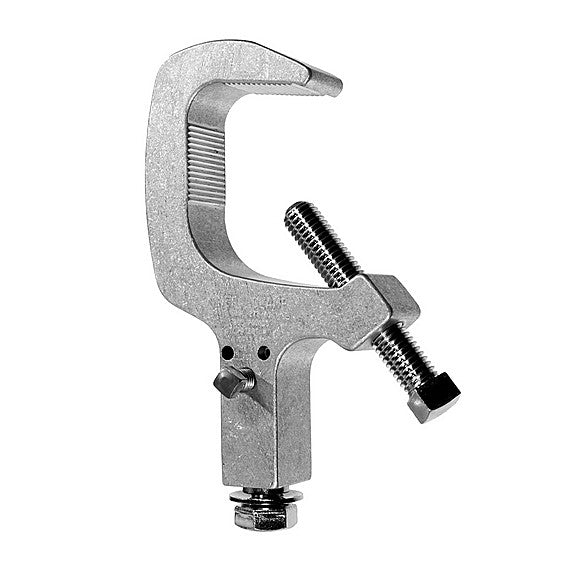

Pan locking bolt style theatrical C-Clamp. Fixture is bolted to and rotates on a steel post in the clamp body. It comes with half inch fasteners.
Minimum Size
1" pipe, 1.315" OD
Maximum Size2" pipe, 2.375" OD
Working Load Limit550 lb 250 kg
Hardware1/2″ × 1″ long hex head Grade 5 zinc bolt
1/2″ × 3″ long square head set screw
Belleville spring washer
1 lb.
