The Light Source

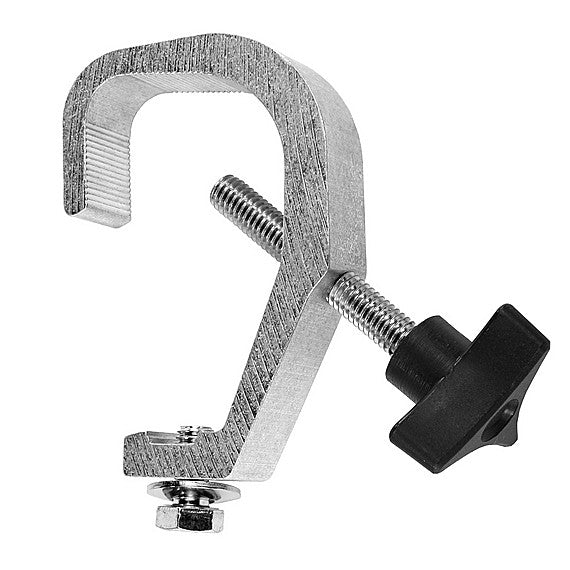

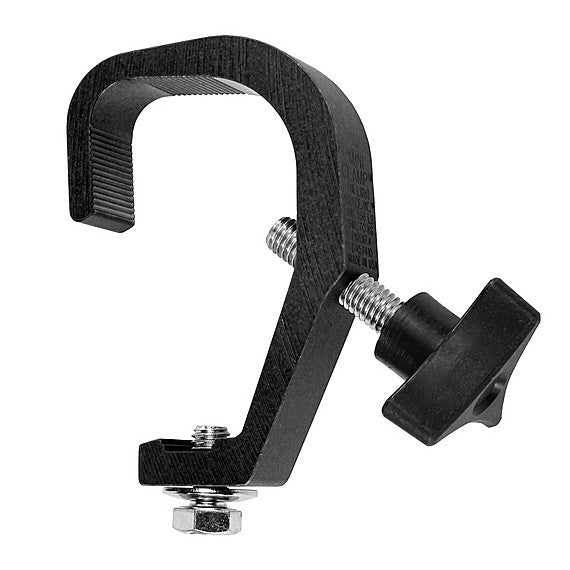

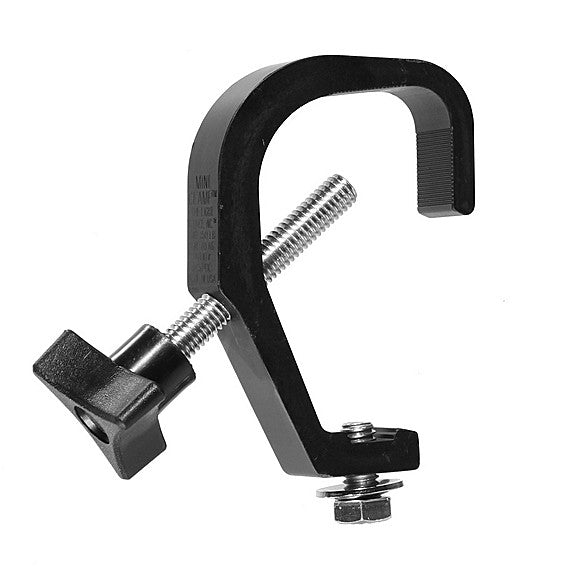

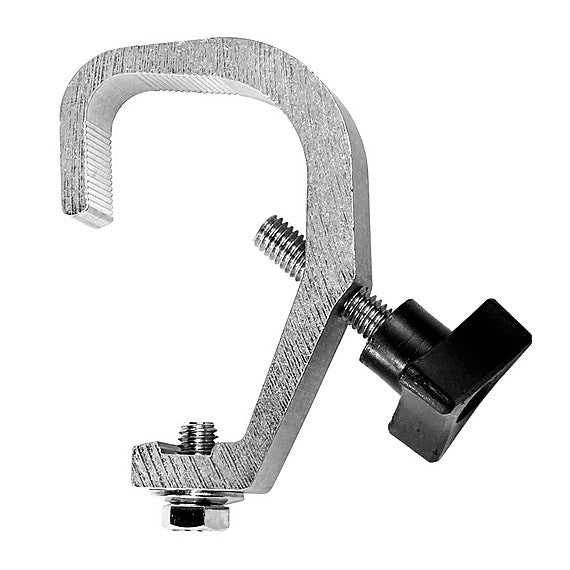

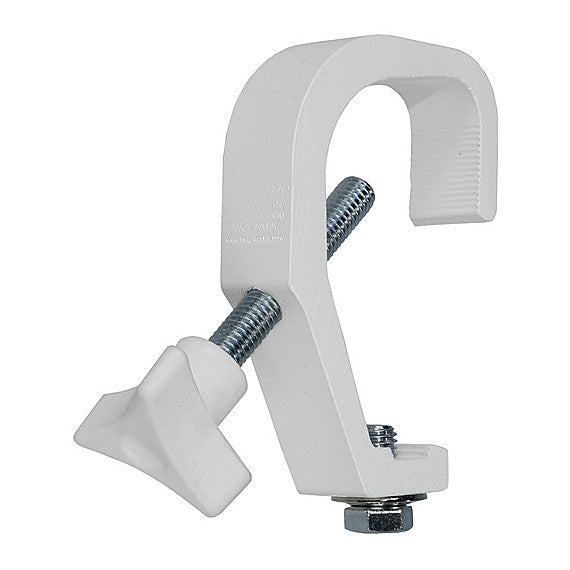

Mini-Clamp

Mini-Clamp

Regular price $18.02
Regular price Sale price $18.02
Sale Sold out
Shipping calculated at checkout.

Usually ships in 10 - 15 days. Contact us for expedited shipping at 205-578-3156.

Perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.

Will grip from 3/4" to 2" tubing. Pipe bolt is 3/8"-16 TPI x 2" Black Plastic Knob. Yoke bolt is a 3/8"-16 TPI x 3/4" long. SWL is 150 pounds,70kg, yet the Mini-Clamp weighs less than 6 oz.

Minimum Size

3/8" pipe, .675" OD

Maximum Size

1.5" pipe, 1.9"OD, 2" OD Truss Tube

Working Load Limit

150 lb 70kg

Hardware

Pipe bolt is a steel 3/8"-16 TPI x 2" stud with a Black Plastic Knob.
Yoke bolt is a 3/8"-16 TPI x 3/4" long.
Belleville Washer

Dimensions

4" tall x 2-3/4" wide x 7/8" thick

Weight

6oz
