Power Sequencer w/ Pass-Through Jacks

Power Sequencer w/ Pass-Through Jacks

Regular price $366.28
Regular price Sale price $366.28
Sale Sold out
Shipping calculated at checkout.

Usually ships in 10 - 15 days. Contact us for expedited shipping at 205-578-3156.

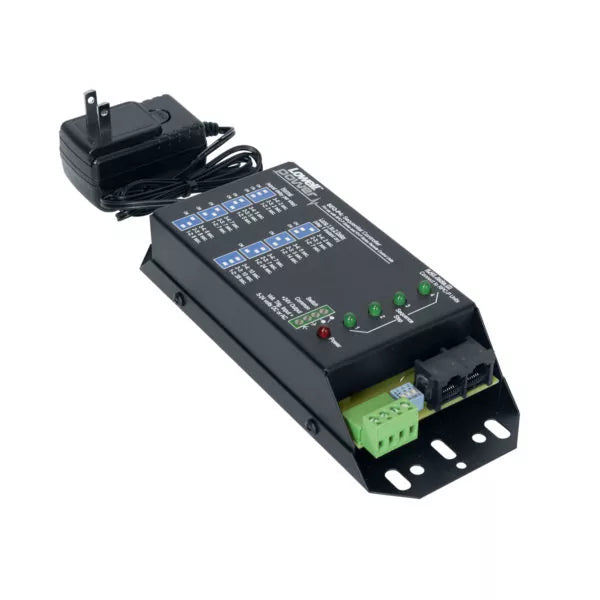

This low voltage 4-step power sequencer with pass-through RJ45 jacks is designed to work with an external trigger and remote power controls, to provide time-delayed activation and deactivation of AC powered equipment on site or at remote locations. It can control up to 80 devices that feature the "pass-through" design.

Alternatively, it can control a virtually unlimited number of devices that use classic connections by adding relay module RY-P1 or RY-P2 as an interface.


  • Quick "pass-through" connections with RJ45 jacks.
  • Because the step assignment is actually selected on the connected devices (RPC-P Series remote power controls or RY-P Series relays), the startup sequence can be quickly changed without the need to re-wire.
  • Four delayed closure circuits activate in sequential order (1, 2, 3, 4) and deactivate in reverse order (4, 3, 2,1). Delay between steps is easily adjusted with DIP switches. Choose equal delays or varied delays with extended delay at startup.
  • Sequencing is initiated via an external trigger (SPST switch or DSP voltage connection). Order separately.
  • 7"L chassis
  • LED status indicators
  • UL Listed power supply with input 100-240VAC, output 24VDC, 500mA, 6 ft. cord and several plug adaptors.
