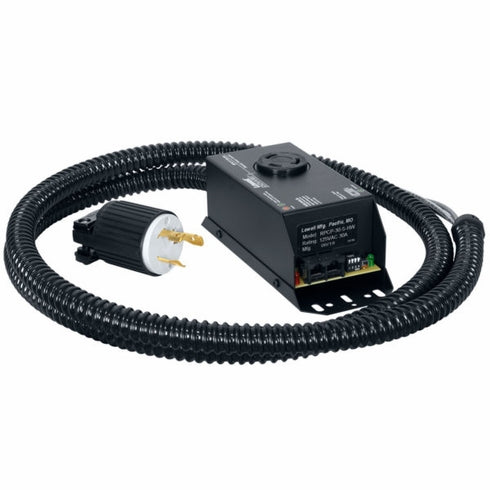

Remote Power Control - Standalone RPC w/ Pass-Through Jacks (30A,SS)

Remote power control with pass-through jacks for labor-saving installation and quick changes to sequencing order via the onboard step selection switch. Note that sequencer SEQ-P4 is required to activate RPC-P Series remote power controls (order separately).

FEATURES

• Chassis:  Steel with black finish, 7.5 in. x 3.25 in. x 2.75 in
• Power Rating:  125VAC, 30A
• Power Inlet: 6 ft. flexible conduit (non-metallic)
• Power Outlet:  L5-30R twistlock
• RJ45 jacks (2)
• DIP Switch: Because the sequence step is selected via the switch on each RPC-P unit, the startup sequence can be quickly modified without re-wiring.
• Activation:  This model requires sequencer (#SEQ-P4) with an external trigger (SPST switch or DSP voltage connection) for activation.
• Multiple RPC-P units can be connected to each other (or compatible relays) to control all from a single location (up to 20 RPC-P units per step)
• This model includes surge suppression (20,000A max. surge current)
